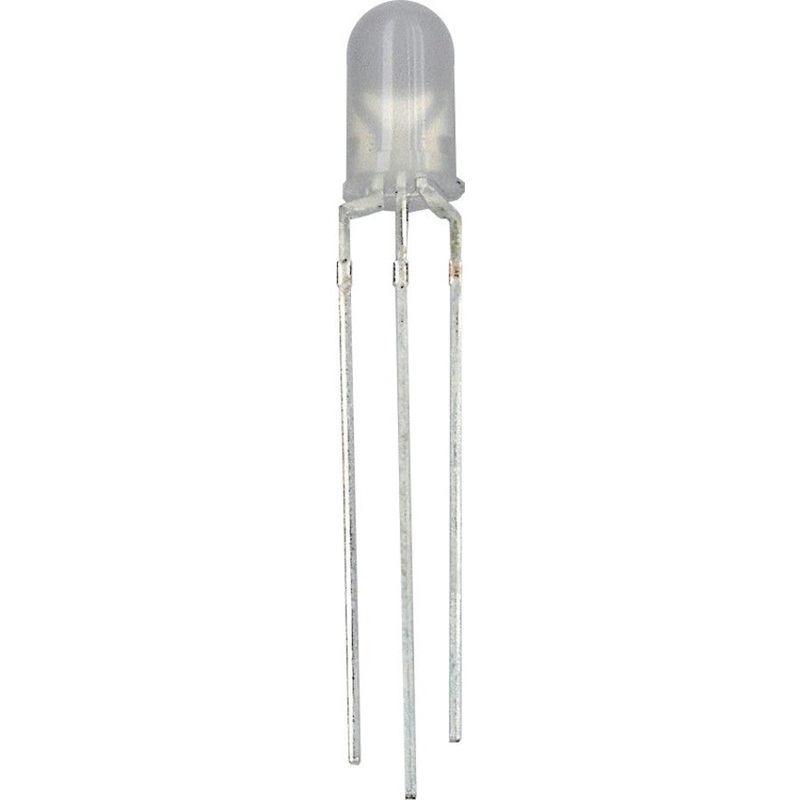

Description
Features:
Bi ColourRedGreen
Wavelength (nm)625(R) 567(G)
VF Typical (V)2.1(R) 2.2(G)
IV Typical (mcd)7.6(R)10(G)
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Bi Colour |
| Light Colour | Red |
| Lens Type | waterclear |
| Viewing Angle | 90 |
| If (typ) – Typical Forward Current | 20mA |
| If (max) – Maximum Forward Current | 30mA |
| Resistor for 5VDC | 150 |
| Resistor for 9VDC | 360 |
| Resistor for 12VDC | 510 |
Downloads
- Download Datasheet
